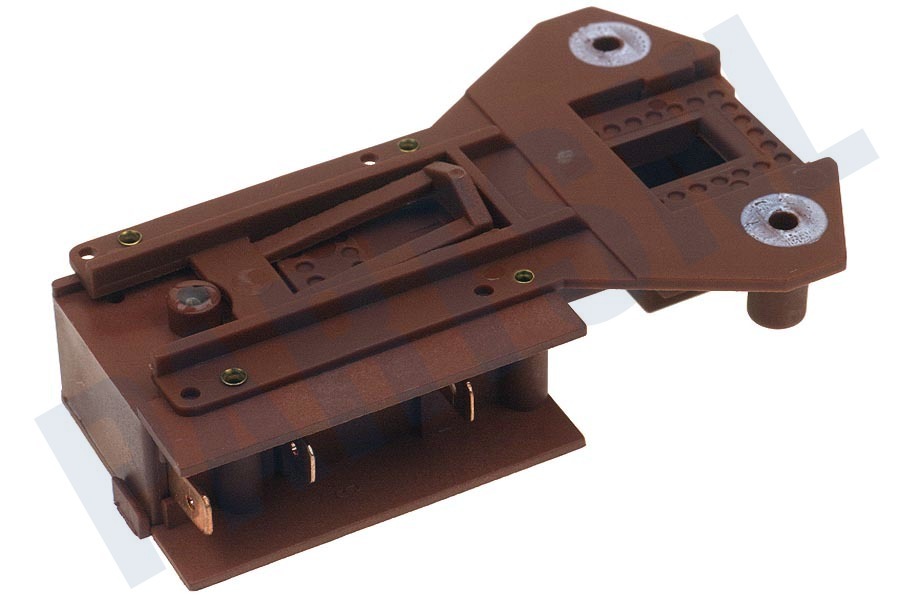

Deurrelais Metalflex Tip ZV-445
Metalflex Tip ZV-445, geschikt voor o.a. ireco



Vandaag besteld, zondag 7 maart verzonden
- Origineelnummer
481969018108
- Barcode
5021879081209
- Artikelnummer
- 0.27.55.02-5
- Verpakking
- 1 stuk
- Merk
Gelijkwaardig aan origineel Whirlpool
- Voor 22:00 besteld direct verzonden
- Gratis ophalen in onze winkels
- 30 dagen bedenktermijn
Veilig betalen met
iDeal
Mastercard
Maestro
Visa
PayPal
Overboeking
Bancontact
GiroPay
SOFORT
Extra informatie
Model T4
Afmetingen
Deurrelais: 64 x 28 x 91 mm
360° foto
Dubbelklik op de 360° afbeelding om deze fullscreen te openen en/of te sluiten.
Geschikt voor
Waar vind ik het typenummer van mijn wasmachine?
- Bauknecht
- Consul
- Erres
- Ignis
- Laden
- Neutral
- Philips
- Philips/Whirlpool
- Phonola
- Radiola
- Thorn
- Whirlpool
- Wrighton
1 | 2 | 3 | 4 | 5 | 6 | 7 |
---|
Merk | Typenummer | Machinecode | Apparaatnaam | Commercieel | Servicenummer | Productie |
---|
Merk | Typenummer | Machinecode | Apparaatnaam | Commercieel | Servicenummer | Productie |
---|---|---|---|---|---|---|
Whirlpool | 006 | AWB006 | AWB006 | AWB006 | tot 01-01-50 | |
Whirlpool | 008 | AWB008 | AWB008 | AWB008 | tot 01-01-50 | |
Whirlpool | 009 | AWB009 | AWB009 | AWB009 | tot 01-01-50 | |
Whirlpool | 014 | AWB014 | AWB014 | AWB014 | tot 01-01-50 | |
Whirlpool | 906 | AWB906 | AWB906 | AWB906 | tot 01-01-50 | |
Whirlpool | 722 | AWG722 | AWG722 | AWG722 | tot 01-01-50 | |
Whirlpool | 006 | AWB00601 | AWB00601 | AWB00601 | tot 01-01-50 | |
Whirlpool | 008 | AWB00801 | AWB00801 | AWB00801 | tot 01-01-50 | |
Whirlpool | 009 | AWB00901 | AWB00901 | AWB00901 | tot 01-01-50 | |
Whirlpool | 014 | AWB01402 | AWB01402 | AWB01402 | tot 01-01-50 | |
Philips | 901 | 851690103100 | AWB 901 | |||
Philips | 9011 | 851690103101 | AWB 901/1 | |||
Philips/Whirlpool | 9012 | 851690103102 | AWB901/2 | AWB9012 | 01-04-81 tot 01-01-50 | |
Philips | 9013 | 851690103103 | AWB 901/3 GR | |||
Philips/Whirlpool | 9014 | 851690103460 | AWB901/4 | AWB9014 | 01-04-90 tot 01-01-50 | |
Philips | 904 | 851690432200 | AWB 904 | |||
Philips | 9041 | 851690432201 | AWB 904/1 | |||
Philips | 9042 | 851690453502 | AWB 904/2 | |||
Philips | 90503 | 851690503203 | AWB 905/03 | |||
Philips/Whirlpool | 9051 | 851690532201 | AWB905/1 | AWB9051 | 01-04-85 tot 31-12-87 | |
Philips/Whirlpool | 9052 | 851690532202 | AWB905/2 | AWB9052 | 01-04-86 tot 31-12-98 | |
Philips/Whirlpool | 9054 | 851690503360 | AWB905/4 | AWB9054 | 01-04-90 tot 01-01-50 | |
Philips/Whirlpool | 9101 | 851691003201 | AWB910/1 | AWB9101 | 01-04-85 tot 31-12-86 | |
Philips/Whirlpool | 910 | 851691003200 | AWB910PH | AWB910PH | 01-04-84 tot 31-12-86 | |
Philips/Whirlpool | 912 | 851691235200 | AWB912 | AWB912 | 01-04-86 tot 31-12-88 | |
Philips/Whirlpool | 9121 | 851691235201 | AWB912/1 | AWB9121 | 01-04-83 tot 31-12-84 | |
Philips/Whirlpool | 9122 | 851691201202 | AWB912/2 | AWB9122 | 01-04-86 tot 31-12-87 | |
Philips/Whirlpool | 9141 | 851691402400 | AWB914/1 | AWB9141 | 01-04-84 tot 31-12-86 | |
Philips/Whirlpool | 914 | 851691403400 | AWB914PH | AWB914PH | 01-04-81 tot 31-12-83 | |
Philips/Whirlpool | 917 | 851691722701 | AWB917 | AWB917 | 01-04-85 tot 31-12-86 | |
Philips/Whirlpool | 917 | 851691722702 | AWB917 | AWB917 | 01-09-85 tot 31-12-87 | |
Philips/Whirlpool | 917 | 851691722703 | AWB917 | AWB917 | 01-11-85 tot 31-12-86 | |
Philips/Whirlpool | 917 | 851691722700 | AWB917 | AWB917 | 01-04-84 tot 01-01-50 | |
Philips | 9201 | 851692003701 | AWB 920/1 | |||
Philips | 9202 | 851692003702 | AWB 920/2 | |||
Philips | 9203 | 851692003703 | AWB 920/3 gr | |||
Philips | 920 | 851692003700 | AWB 920 PH | |||
Philips/Whirlpool | 9211 | 851692103901 | AWB921/1 | AWB9211 | 01-04-85 tot 31-12-88 | |
Bauknecht | 921 | 851692103902 | AWB9212 | tot 01-01-50 | ||
Philips/Whirlpool | 921 | 851692103900 | AWB921PH | AWB921PH | 01-04-84 tot 31-12-88 | |
Philips/Whirlpool | 9213 | 851692103903 | AWB921/3GR | AWB9213GR | 01-04-86 tot 31-12-88 | |
Philips/Whirlpool | 9231 | 851692303901 | AWB923/1 | AWB9231 | 01-04-85 tot 31-12-87 | |
Philips/Whirlpool | 9231 | 851692322721 | AWB923/1WL | AWB9231WL | 01-04-86 tot 31-12-87 | |
Philips/Whirlpool | 9232 | 851692303902 | AWB923/2 | AWB9232 | 01-04-84 tot 31-12-85 | |
Philips/Whirlpool | 9232 | 851692322722 | AWB923/2WL | AWB9232WL | 01-04-84 tot 31-12-85 | |
Philips/Whirlpool | 923 | 851692303900 | AWB923PH | AWB923PH | 01-04-84 tot 31-12-86 | |
Philips/Whirlpool | 923 | 851692322720 | AWB923Wl | AWB923Wl | 01-04-85 tot 31-12-87 | |
Philips/Whirlpool | 931 | 851693103700 | AWB931PH | AWB931PH | 01-04-87 tot 01-01-50 | |
Philips/Whirlpool | 933 | 851693322620 | AWB933WLbr | AWB933WLbr | 01-04-90 tot 01-01-50 | |
Philips/Whirlpool | 9331 | 851693322760 | AWB933/1 | AWB9331 | 01-04-90 tot 01-01-50 |
1 | 2 | 3 | 4 | 5 | 6 | 7 |
---|
Beoordelingen (0)
Log in op uw account om een beoordeling over Deurrelais Metalflex Tip ZV-445 van Whirlpool te plaatsen.
Anderen kochten ook (1)
Tips (1)
Hoe vervang ik het deurslot van mijn wasmachine?
- Het slot zit in de deuropening aan de voorkant van de wasmachine.
- Veiligheid voorop – haal de stekker uit het stopcontact en draai de kraan dicht.
- Draai de schroeven los en haal het bovenste paneel eraf.
- Draai de schroeven van het deurslot los.
- Duw het deurslot uit de voorkant van de wasmachine.
- Maak de beschermkap los van het deurslot.
- Haal de vergrendeling van de aansluiting los en trek de bedrading los.
- Bevestig de bedrading aan het nieuwe deurslot.
- Monteer de beschermkap op het deurslot.
- Plaats het deurslot op de voorkant van de wasmachine, schuif deze op zijn plaats en draai de schroeven vast.
- Plaats het bovenste paneel en draai de schroeven vast.
- Zo vervang je het deurslot van jouw wasmachine.
